Product performance characteristics

Electrician's conduit

Jingyuan PVC electrical conduit has excellent insulation performance and a high resistance to current breakdown voltage. It can withstand a voltage of 2000 volts without being broken down, so there is no risk of electrification for Jingyuan PVC electrical conduit.

The PVC electrical conduit of Yijingyuan has strong impact resistance and can withstand pressure. It can be concealed in concrete and is not afraid of damage from pressure and impact.

The fire resistanc performance of the original PVC electrical conduit is excellent. It has a high gas index and is difficult to burn, self-extinguishing instantly when removed from the flame.

Moisture-proof and acid and alkali resistant - Jingyuan PVC electrical conduit is moisture-proof and will not rust like metal conduits, and is resistant to acid, alkali and oil.

The anti-insect and anti-rodent PVC electrical conduit from Jingyuan does not emit the smell that insects and rodents like, thus avoiding their gnawing and damage.

A flexible tube only needs to be inserted with a spring. It can be bent by gently applying force with your hand without heating.

Connection method one: Use Jingyuan adhesive to directly connect the pipe with various accessories, and all wiring requirements can be met.

"Jingyuan Plastic Industry" brand wire trough

The Yijingyuan PVC cable tray is easy to install and disassemble. It features a unique interlocking method, making it extremely easy to open and assemble. It is firm and aesthetically pleasing.

The fire resistance performance of Yijingyuan PVC trunking is excellent. It has a high oxygen index and is difficult to burn.

The PVC cable tray of Jingyuan has a strong screw-holding capacity and will not break due to nails.

The elegant and generous Yijingyuan PVC trunking has a small color difference and an attractive shape, making it suitable for indoor exposed installation.

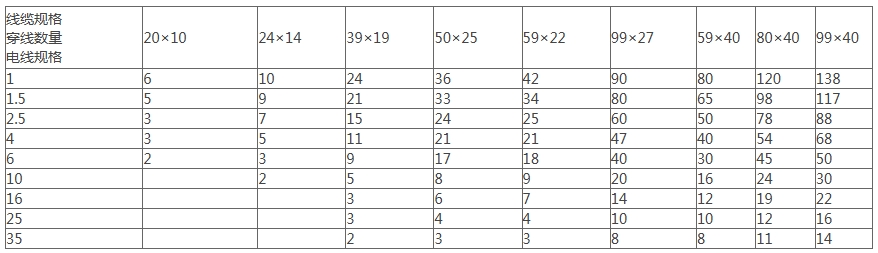

Table of the maximum number of wires to be threaded in the well source wire trough

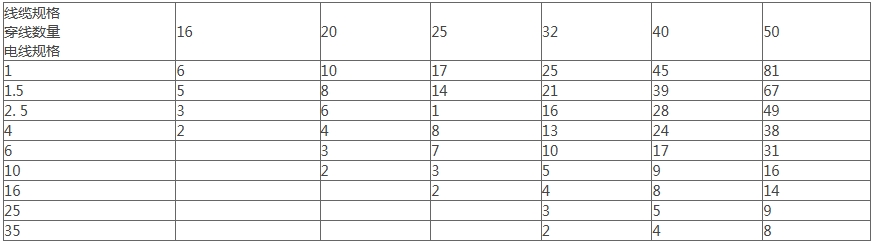

Table of the maximum number of wires that can be threaded through open source conduit
